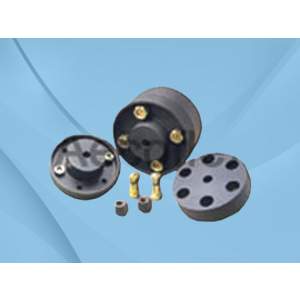

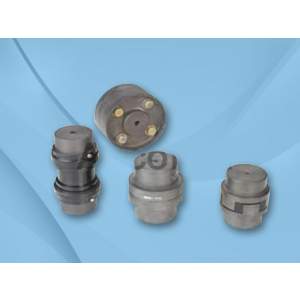

Pinbush Coupling
Call Now
WhatsApp
CategoryCoupling Casting
Payment MethodsCash, COD, DirectDebit
About Pinbush Coupling
- Transmits torque through high tensile steel bolts.
- Highly developed rubber compounds are used in bushes to absorb shock loads, torsional
- vibrations and slight misalignments.
- Range of 26 sizes with power rating from 0.81 Kw to 2069 Kw at 100 rpm.
Pin Bush Coupling
Pin Bush type Flexible Coupling is of the cushioned drive type, transmitting the torque through high tensile steel bolts to the machine input. Highly developed rubber compounds are used in bushes to absorb shock, tensional vibrations and slight misalignments. Simple and compact in construction, Pin Bush Couplings are capable of transmitting high torques at maximum speeds. This type of coupling permits drives in either direction and requires neither lubrication, nor adjustment after fitting.
Sizes :- 2 inches to 25 inches
| Series | Size HFG | Load Capacity | Max RPM | Dimensions in mm | D DIA | E | F | L | G | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Torque Kg. M. | HP Per 100RPM | A | B | ||||||||
| 96 | 8 | 125 | 1.75 | 7200 | 28 | 30 | 96 | 44 | 50 | 35 | 4 |
| 112 | 10 | 250 | 3.5 | 6100 | 38 | 42 | 112 | 62 | 68 | 45 | 4 |
| 125 | 8 | 400 | 5.6 | 5500 | 40 | 48 | 125 | 65 | 75 | 50 | 4 |
| 140 | 10 | 520 | 7.3 | 4900 | 48 | 55 | 140 | 76 | 88 | 55 | 4 |
| 160 | 9 | 750 | 10.5 | 4500 | 55 | 60 | 160 | 85 | 95 | 60 | 4 |
| 180 | 10 | 1050 | 14.7 | 3800 | 65 | 70 | 180 | 102 | 112 | 70 | 4 |
| 200 | 12 | 1450 | 20.3 | 3400 | 75 | 80 | 200 | 120 | 128 | 80 | 4 |
| 225 | 11 | 2400 | 333.7 | 3000 | 85 | 90 | 225 | 134 | 144 | 90 | 7 |
| 250 | 12 | 3000 | 42.1 | 2700 | 95 | 105 | 250 | 154 | 164 | 100 | 7 |
| 285 | 11 | 4900 | 68.8 | 2400 | 105 | 110 | 285 | 166 | 176 | 110 | 7 |
| 320 | 12 | 6000 | 84 | 2100 | 120 | 125 | 320 | 190 | 195 | 125 | 7 |
| 360 | 11 | 10000 | 140 | 1900 | 130 | 135 | 360 | 205 | 210 | 140 | 10 |
| 400 | 10 | 14000 | 196 | 1700 | 135 | 145 | 400 | 218 | 230 | 160 | 10 |
| 450 | 12 | 21000 | 295 | 1500 | 160 | 160 | 450 | 255 | 255 | 180 | 6 |
| 500 | 14 | 27500 | 385 | 1350 | 180 | 180 | 500 | 290 | 290 | 200 | 6 |
| 560 | 10 | 33100 | 465 | 1200 | 200 | 200 | 560 | 320 | 320 | 220 | 6 |
| 630A | 12 | 46000 | 645 | 1050 | 160 | 160 | 630 | 300 | 300 | 240 | 6 |
| 630B | 12 | 46000 | 645 | 1050 | 220 | 220 | 630 | 355 | 355 | 240 | 6 |
| 710A | 12 | 80000 | 1122 | 950 | 180 | 180 | 710 | 350 | 350 | 290 | 7 |
| 710B | 12 | 80000 | 1122 | 950 | 240 | 240 | 710 | 400 | 4700 | 290 | 7 |
| 800A | 14 | 110000 | 1543 | 850 | 220 | 220 | 800 | 420 | 420 | 290 | 7 |
| 800B | 14 | 110000 | 1543 | 850 | 260 | 260 | 800 | 460 | 460 | 290 | 7 |
| 800C | 14 | 110000 | 1543 | 850 | 290 | 290 | 800 | 490 | 490 | 290 | 7 |
| 900A | 16 | 190000 | 2666 | 750 | 250 | 250 | 900 | 470 | 470 | 340 | 7 |
| 900B | 16 | 190000 | 2666 | 750 | 300 | 300 | 900 | 515 | 515 | 340 | 7 |
| 900C | 16 | 190000 | 2666 | 750 | 340 | 340 | 900 | 560 | 560 | 340 | 7 |
| 1000A | 16 | 250000 | 3508 | 675 | 275 | 275 | 1000 | 480 | 480 | 400 | 10 |
| 1000B | 18 | 250000 | 3508 | 675 | 320 | 320 | 1000 | 530 | 530 | 400 | 10 |
| 1000C | 18 | 250000 | 3508 | 675 | 380 | 380 | 1000 | 590 | 590 | 400 | 10 |
| 1100A | 16 | 320000 | 4490 | 615 | 300 | 300 | 1100 | 540 | 540 | 440 | 10 |
| 1100B | 16 | 320000 | 4490 | 615 | 350 | 350 | 1100 | 595 | 595 | 440 | 10 |
| 1100C | 16 | 320000 | 4490 | 615 | 400 | 400 | 1100 | 650 | 650 | 440 | 10 |
| 1200A | 18 | 400000 | 5613 | 560 | 300 | 300 | 1200 | 570 | 570 | 480 | 10 |
| 1200B | 18 | 400000 | 5613 | 560 | 375 | 375 | 1200 | 640 | 640 | 480 | 10 |
| 1200C | 18 | 400000 | 5613 | 560 | 450 | 450 | 1200 | 720 | 720 | 480 | 10 |
